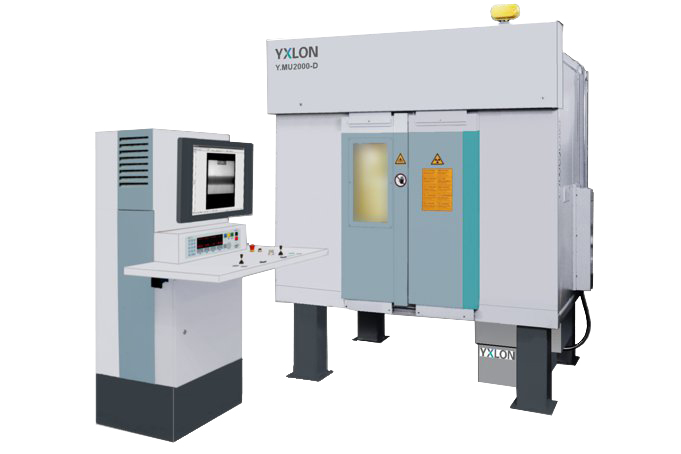

Y.MU2000-D
With over 490 X-ray systems sold worldwide, Y.MU2000-D is the standard system in X-ray inspection and now also available with CT option.
Y.MU2000-D
To ensure constant product quality it is essential that information about the inner composition of the products and materials is gained and that the production process is checked on continuous basis.
Features
- High Radiation power : 320kV – 450kV
- Active area : 200x200mm
- High Capacity cabinet
- Quick scan
- Optional CT function in retrofitting
- Inspection envelope, radioscopy : ∅600x900Hmm
- Inspection item weight : 60kg (optional 200kg)
- Active area : 200x200m
- Pixel size : 200 µm/400 µm
- Frame rate : 15fps/30fps
