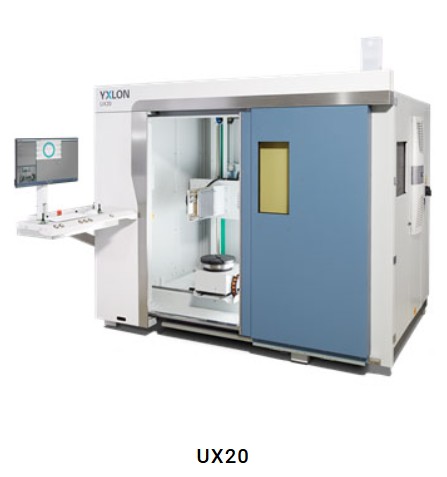

The UX20 system is desiged from the ground up for fast and easy x-ray inspection of your parts.


Universal X-ray and CT inspection system for medium to large cast parts

  • Easy operation with Yxlon‘s award winning user interface Geminy
  • Fast results with large inspection envelope in 2D and 3D
  • Modern industrial design with a compact footprint


  • High Radiation power : 160kV – 225kV
  • Active area : 230 x 230 mm
  • High Capacity cabinet
  • Quick scan
  • Optional CT function in retrofitting
  • Inspection envelope, radioscopy : ∅710 x 1,090H mm
  • Inspection item weight : 100 kg
  • Pixel size : 179 µm
