Ideal for Class IV Tool Post Use or Integration Applications

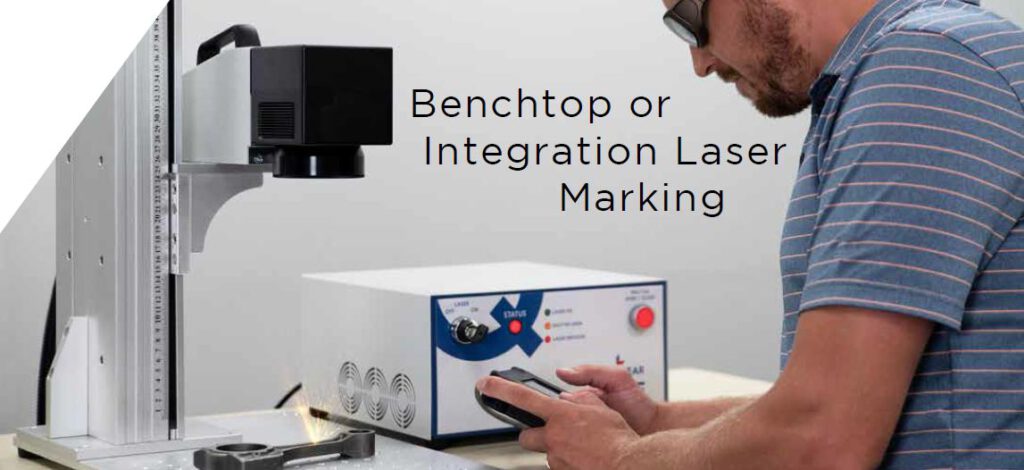

LaserGear QUBE is a Class 4 laser marking system that is ideal for use in an open environment or integrated into production lines. Featuring a 20W MOPA fiber laser, QUBE delivers both strength and speed to accomplish a variety of applications. Mount QUBE to a tool-post for marking applications which require open space and flexibility. Integrate QUBE into automated lines for unattended or turnkey applications. Connect a laptop or desktop PC via USB and begin programming in our Minilase Pro SE software.
Features
- Class IV integration laser marking system
- Compact head design and controls enclosure
- 20W MOPA fiber laser
- I/O for automated system control
QUBE60 Features More Power
QUBE60 adds more power and selectable pulse durations for advanced marking
capability, with improvements to speed, flexibility, and deep engraving.
Includes all the features of the QUBE with the additions of:
- 60W MOPA Fiber Laser
- 8 Selectable Pulse Durations
SOFTWARE
LaserGear Marking Software

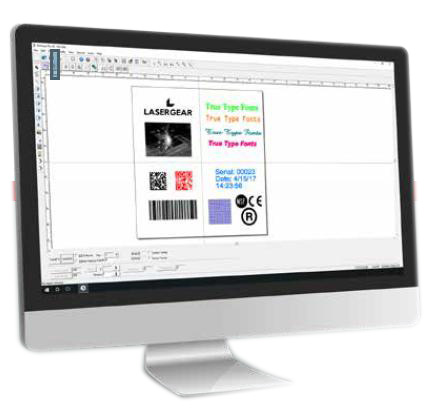

With our user-friendly software, operators and engineers can quickly create marking files with text, barcodes, 2D codes, and a variety of graphic formats such as DXF, AI, PLT, BMP, and JPEG. CAD tools allow users to draw their own graphics and manipulate complex vector files.
Automated date coding and serialization capabilities are also included. A pre-configured materials library takes the guess work out of setting up laser marking parameters. Control a rotary device for 360° marking.
Laser Control Center
Advanced machine control is included with our LaserGear BOQX Laser Control software module. Control and change the machine z-axis height, view activity logs, and more using your laser programming PC.
MR65 Rotary

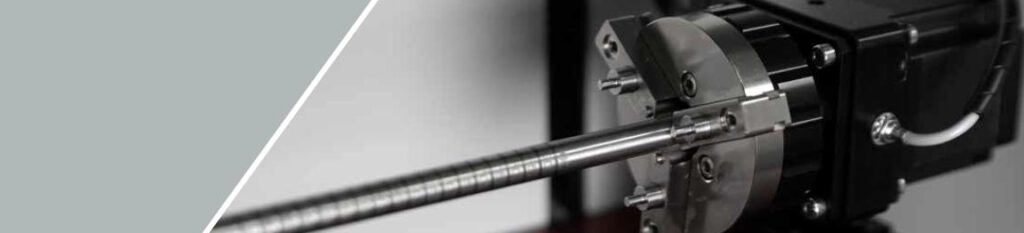

The MR65 is a robust, compact rotary axis ideal for 360° radial laser marking. The unit features a manual three jaw holding chuck along with multi-diameter fingers for holding the ID or OD of components. A tilting feature enables marking on complex angles or inner diameters.
Handheld Control Pendant
The handheld control pendant is available for all LaserGear products and features advanced system control such as: Start/ Stop Marking, Shutter Control, Laser On/ Off Status, Busy Status, Cycle Complete Alert, Z Axis Control (BOQX), Laser Temperature and Serial Information, and Warnings and Error Messages.
Tool Post
Our manual tool post allows provides secure mounting and focal height adjustment for the LaserGear QUBE product. A baseplate with through holes allows for fixture mounting and part presentation.
Fume Extraction
A variety of fume extractor products are available to remove harmful dust, debris, and fumes created by the marking process.
Laser Safety Glasses
For safety in Class IV operation.
| System Dimensions / Weight (approx.) | Rack: 13.5”W x 13.5”L x 6.56”H / 35lbs (mm) 343W x 343 L x 167H / 16kg Head: 4.0”W x 14.0”L x 4.5”H / 10lbs (mm) 102W x 356 L x 114H / 4.5kg |
| Standard Marking Field | 163 Focal Lens 3.93” x 3.93” / 100mm x 100mm |
| Upgrade Lens | 254 Focal Lens 6.5” x 6.5” / 165mm x 165mm |
| Laser Type | Ytterbium Fiber |
| Wavelength | 1062nm +/- 3nm |
| Wattage | 20W |
| Frequency Range | 1-400kHz |
| Pulse Duration | 200ns |
| Operative Ambient Air Temp | 0° – 40° C / 32° – 104° F |
| Cooling | Forced Air |
| Input Power Requirements | Power Sensing 110-240VAC 50/60Hz |
| Aiming Beam | (2) Class IIIa/3R Red Diode |
| PC | Windows 7 or 10 Laptop or Desktop PC |
| PC Connection | USB |
| Machine Ports | Diagnostic, Option Pendant |
| Warranty | 18 Month Comprehensive, Unlimited Hours |
| Documentation (Provided in Digital Format via USB Drive) | System & Software Manuals Laser Settings Guide / Safety Manual |
